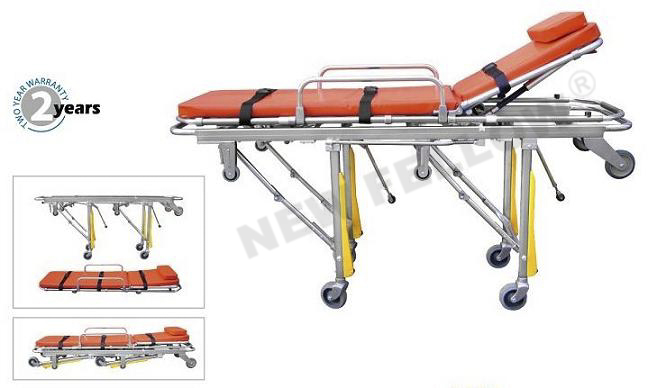

Medical Stretcher NF-A5

Medical Stretcher NF-A5 Auxiliary graph

Medical Stretcher Technical features:

Automatic loading without any control handles

It has a separable stretcher with the main stretcher frame which could be removed from trolley and used as a separate stretcher, easy locking/unlocking system to lock the separable stretcher into the trolley

The backrest can be adjusted from 0 - 65 deg by gas spring

Swing-down side rails to protect patient when transfer

Only one person can slide the stretcher on to the ambulance

The stretcher can be locked by the fixing device when it is in the ambulance

It is made of high-strength aluminum alloy

φ125mm wide rubber castors

Medical Stretcher NF-A5 Mainly used for ambulance, hospitals, emergency centers


Waterproof seamless welding PVC mattress(5cm thickness foam)

3pcs belts for chest, hip and knee

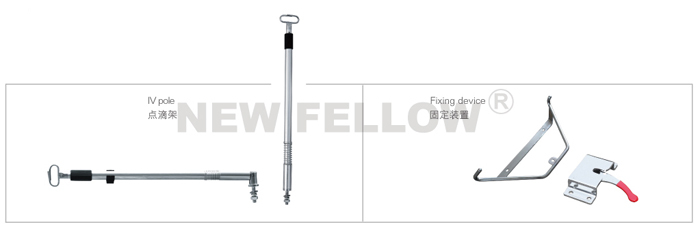

Fixing device L03

Medical Stretcher NF-A5 Optional:

IV pole I02


Model High position Low position Max angle of
the backrest
N.W Load bearing Packing
Quantity Size(L*W*H) G.W
NF-A5 195*55*90cm 195*55*36cm 65° 45kg 180kg 1 201*62*38cm 55kg
