NF-A1 Ambulance Stretcher

NF-A1 Ambulance Stretcher Auxiliary graph

Ambulance Stretcher Technical features:

Two sets loading wheels to fit different height of ambulance board

The backrest can be adjusted from 0 - 65 deg by gas spring

Swing-down side rails to protect patient when transfer

The mechanical legs are controlled by the handles in both sides, there is a safety lever to control front and hind legs to fold while loading and prevent collapse while standing

Only one person can slide the stretcher on to the ambulance

The stretcher can be locked by the fixing device when it is in the ambulance

It is made of high-strength aluminum alloy.

φ125mm wide rubber castors, two with brakes

Ambulance Stretcher NF-A1 Mainly used for ambulance, hospitals, emergency centers

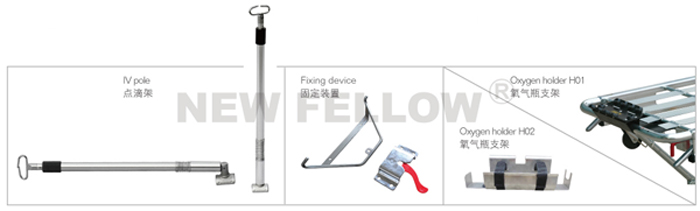

Accessories:

  • Waterproof seamless welding PVC mattress(5cm thickness foam)
  • 3pcs belts for chest, hip and knee
  • Fixing device L01

Ambulance Stretcher Optional:

  • IV pole I01
  • Pillow
  • Oxygen holder
Model High position Low position Max angle of
the backrest
N.W Load bearing Packing
Quantity Size(L*W*H) G.W
NF-A1 195*55*85cm 195*55*25cm 65° 41kg 180kg 1 204*62*30cm 48kg
