Ambulance Stretcher

Ambulance Stretcher NF-A1-1

Technical features:

Two sets loading wheels to fit different height of ambulance board

The backrest can be adjusted from 0 - 65 deg by gas spring

Swing-down side rails to protect patient when transfer

The mechanical legs are controlled by the handles in both sides, there is a safety lever to control front and hind legs to fold while loading and prevent collapse while standing

Only one person can slide the stretcher on to the ambulance

The stretcher can be locked by the fixing device when it is in the ambulance

It is made of high-strength aluminum alloy.

φ125mm common rubber castors, two with brakes

Mainly used for ambulance, hospitals, emergency centers


Waterproof seamless welding PVC mattress(5cm thickness foam)

3pcs belts for chest, hip and knee

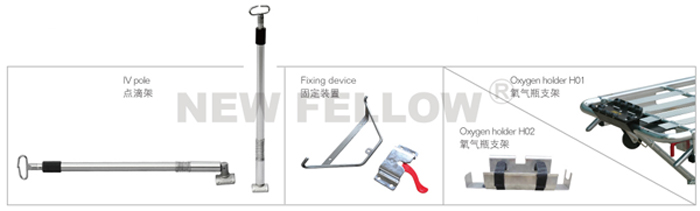

Fixing device L01-1


IV pole I01


Oxygen holder H01 or H02

Model High position Low position Max angle of
the backrest
N.W Load bearing Packing
Quantity Size(L*W*H) G.W


195*55*85cm 195*55*25cm 65° 37kg 180kg 1 204*62*30cm 45kg
