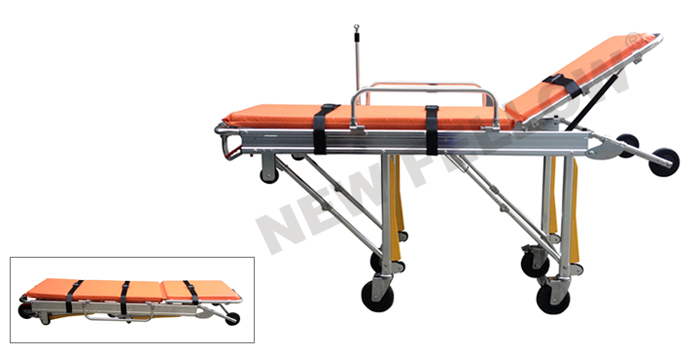

Ambulance Stretcher(Square Leg) NF-A2

Technical features:

The height of loading wheels is adjustable to fit different height of ambulance board

The backrest can be adjusted from 0 - 65 deg by gas spring

Swing-down side rails to protect patient when transfer

Square leg, stronger.

The mechanical legs are controlled by the handles in both sides, there is a safety lever to control front and hind legs to fold while loading and prevent collapse while standing

Only one person can slide the stretcher on to the ambulance

The stretcher can be locked by the fixing device when it is in the ambulance

It is made of high-strength aluminum alloy

φ125mm wide rubber castors, two with brakes

Mainly used for ambulance, hospitals, emergency centers


Waterproof seamless welding PVC mattress(5cm thickness foam)

3pcs belts for chest, hip and knee

Fixing device L01-1


IV pole I02


Oxygen holder

Model High position Low position Maximum angle
of the back
N.W Load Bearing Packing
Quantity Size(L*W*H) G.W
NF-A2 195×55×85cm 195×55×25cm 65° 40kg 180kg 1 201×62×28cm 47kg
