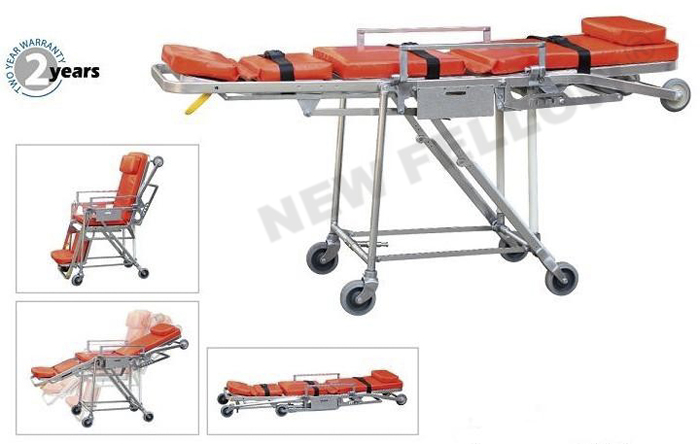

Automatic Loading Stretcher NF-A6

Automatic Loading Stretcher NF-A6 Auxiliary graph

Automatic Loading Stretcher Technical features:

With capability to convert into wheel chair

The backrest can be adjusted from 0 - 65 deg by gas spring

Swing-down side rails to protect patient when transfer

The mechanical legs are controlled by right handle

Only one person can slide the stretcher on to the ambulance

The stretcher can be locked by the fixing device when it is in the ambulance

It is made of high-strength aluminum alloy

φ125mm wide rubber castors

Automatic Loading Stretcher NF-A6 Mainly used for ambulance, hospitals, emergency centers

Accessories:

Waterproof seamless welding PVC mattress(5cm thickness foam)

3pcs belts for chest, hip and knee

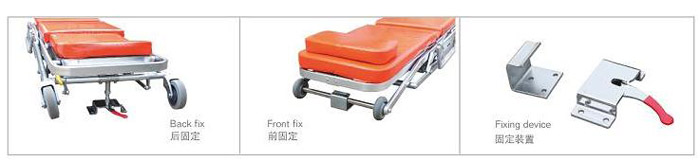

Fixing device L03

Optional:

Pillow

Model High position Low position Max angle of
the backrest
N.W Load bearing Packing
Quantity Size(L*W*H) G.W
NF-A6 195*55*85cm 195*55*25cm 65° 39kg 180kg 1 200*65*28cm 45kg
