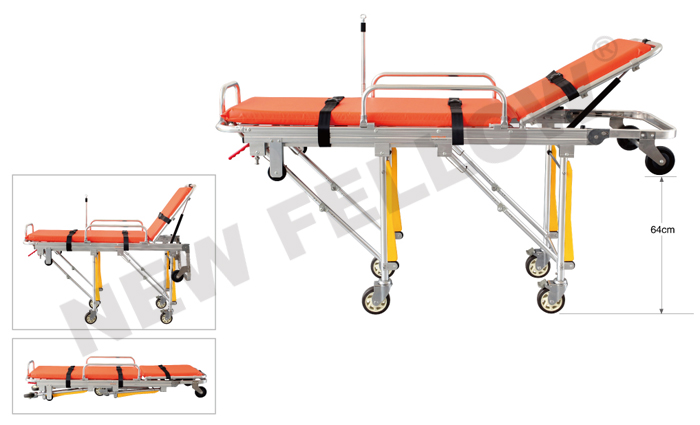

Ambulance Stretcher NF-A3-3

Ambulance Stretcher NF-A3-3-2

Technical features:

Breakaway head section when using in elevator

The backrest can be adjusted from 0 - 65 deg by gas spring

Swing-down side rails to protect patient when transfer

The mechanical legs are controlled by the handles in both sides, there is a safety lever to control front and hind legs to fold while loading and prevent collapse while standing

Only one person can slide the stretcher on to the ambulance

The stretcher can be locked by the fixing device when it is in the ambulance

It is made of high-strength aluminum alloy

Φ 125mm wide rubber castors, two with breaks

Mainly used for ambulance, hospitals, emergency centers

Accessories:

Waterproof PVC mattress(5cm thickness foam)

3pcs belts for chest, hip and knee

Fixing device L01-1

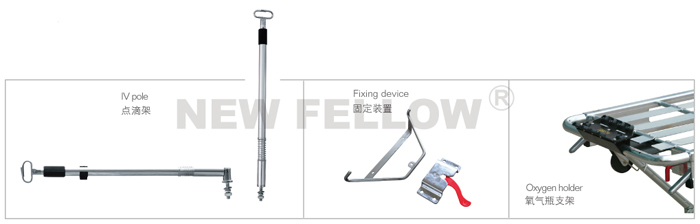

Optional:

IV pole I01

Pillow

Oxygen holder H01

Model High position Low position Max angle of
the backrest
N.W Load bearing Packing
Quantity Size(L*W*H) G.W

NF-A3-3

195*55*85cm 195*55*25cm 65° 39kg 180kg 1 201*62*28cm 45kg
