Aluminum Stretcher NF-A3-1

Aluminum Stretcher NF-A3-1 Auxiliary graph

Aluminum Stretcher Technical features:

It has a separable stretcher with the main stretcher frame which could be removed from trolley and used as a separate stretcher, easy locking/unlocking system to lock the separable stretcher into the trolley

The separate stretcher with capability to convert into wheel chair

Two sets loading wheels to fit different height of ambulance board

The backrest can be adjusted from 0 - 65 deg by gas spring

Swing-down side rails to protect patient when transfer

The mechanical legs are controlled by the handles in both sides, there is a safety lever to control front and hind legs to fold while loading and prevent collapse while standing

Only one person can slide the stretcher on to the ambulance

The stretcher can be locked by the fixing device when it is in the ambulance

It is made of high-strength aluminum alloy

Φ 125mm wide rubber castors, two with breaks

Aluminum Stretcher Mainly used for ambulance, hospitals, emergency centers


Waterproof PVC mattress(5cm thickness foam)

3pcs belts for chest, hip and knee

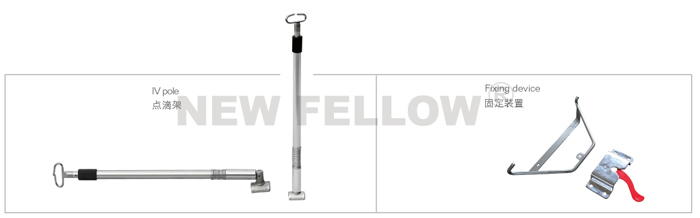

Fixing device L01


IV pole I01


Model High position Low position Max angle of
the backrest
N.W Load bearing Packing
Quantity Size(L*W*H) G.W
NF-A3-1 195*55*90cm 195*55*30cm 65° 40kg 180kg 1 201*62*34cm 51kg
