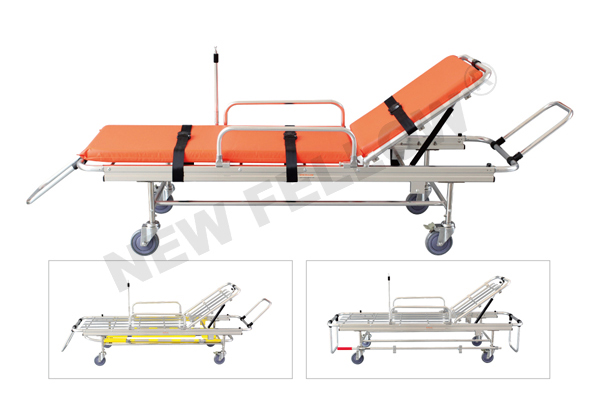

Aluminum Ambulance Stretcher NF-L2
Technical features:
Low position stretcher, suitable for low height board ambulance
The backrest can be adjusted from 0 - 65 deg by gas spring
Swing-down side rails to protect patient when transfer
The bottom space of the stretcher is designed for storage of scoop stretcher.
The stretcher can be locked by the fixing device when it is in the ambulance
It is made of high-strength aluminum alloy
φ125mm castors, diagonal brakes, swivel front castors and non-swivel rear castors
Mainly used for ambulance, hospitals, emergency centers
Suitable for the ambulance: the wheel hub height is less than 29cm
Accessories:
Waterproof seamless welding PVC mattress(5cm thickness foam)
3pcs belts for chest, hip and knee
Fixing device L02
Optional:
IV pole I02
Pillow
| Model | Unfolded size (L*W*H) |
Max angle of the backrest |
Distance between front and rear wheel |
N.W | Load bearing | Packing | ||
| Quantity | Size(L*W*H) | G.W | ||||||
| NF-L2 | 190*55*44cm | 65° | 120cm | 30kg | 180kg | 1 | 201*62*41cm | 36kg |
