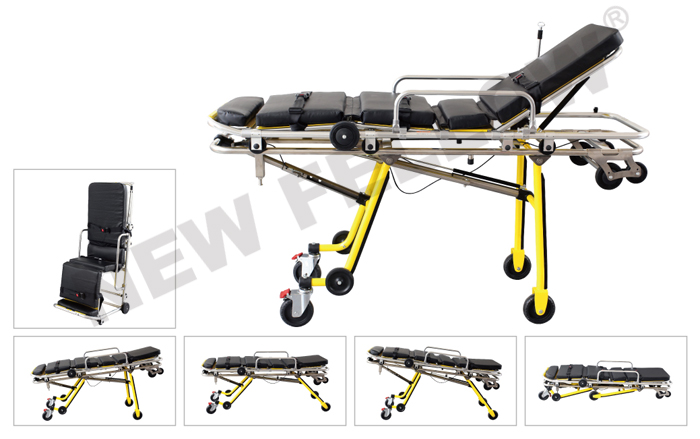

Aluminium Ambulance Stretcher NF-A10

Aluminium Ambulance Stretcher NF-A10 Auxiliary graph

Technical features:

It has a separable stretcher with the main stretcher frame which could be removed from trolley and used as a separate stretcher, easy locking/unlocking system to lock the separable stretcher into the trolley

The separate stretcher with capability to convert into wheel chair

Adjustable height

The backrest can be adjusted from 0 - 65 deg by gas spring

Swing-down side rails to protect patient when transfer

The mechanical legs are controlled by right handle

Only one person can slide the stretcher on to the ambulance

The stretcher can be locked by the fixing device when it is in the ambulance

It is made of high-strength aluminum alloy.

φ150mm ,125mm wide rubber castors

Mainly used for ambulance, hospitals, emergency centers

Accessories:

Waterproof seamless welding PVC mattress(5cm thickness foam)

3pcs belts for chest, hip and knee

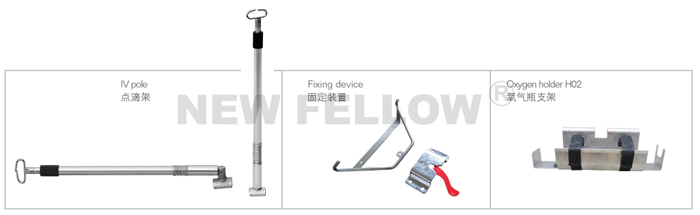

Fixing device L01

Optional:

IV pole I01

Pillow

Oxygen holder

Model High position Low position Max angle of
the backrest
Max angle of
the knee part
N.W Load bearing Packing
Quantity Size(L*W*H) G.W
NF-A10 195*55*85cm 195*55*50cm 65° 15° 45kg 180kg 1 200*63*41cm 52kg
