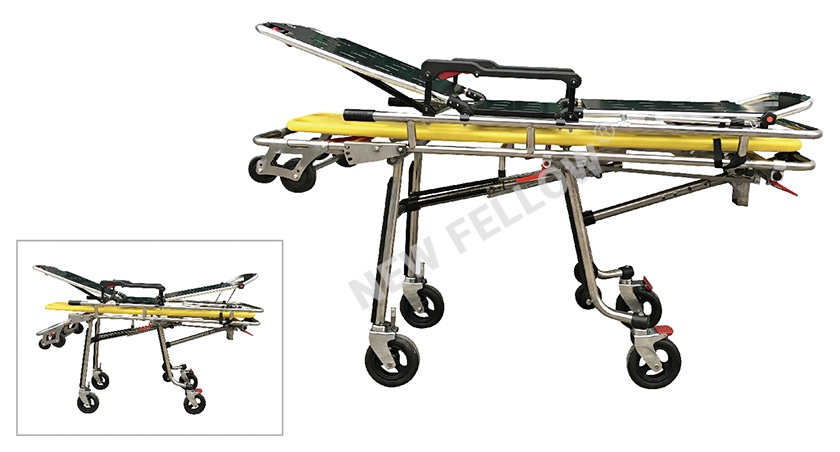

Ambulance Stretcher NF-A8-1
Technical features:
The bottom space for spine board storage
Adjustable height: 65-90cm
The backrest can be adjusted from 0 - 65 deg by gas spring
Fall-down side rails to protect patient when transfer
The mechanical legs are controlled by the handles in both sides
Only one person can slide the stretcher on to the ambulance
The stretcher can be locked by the fixing device when it is in the ambulance
It is made of high-strength aluminum alloy and stainless steel.
Φ200mm wide rubber castors
Mainly used for ambulance, hospitals, emergency centers
Accessories:
- Waterproof seamless welding PVC mattress(5-8cm thickness foam)
- 3pcs belts for chest, hip and knee
- Fixing device L01-1 or L06

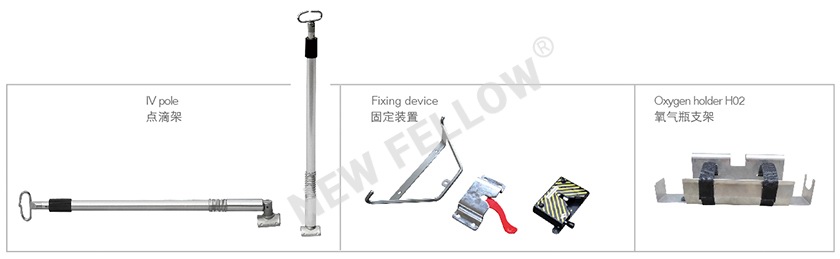

Optional:
- IV pole I01
- Pillow
- Oxygen holder H01
| Model | Unfolded size£¨L*W*H£© | Folded size£¨L*W*H£© | N.W | Load Bearing | Packing | ||
| Quantity | Size£¨L*W*H£© | G.W | |||||
| NF-A8-1 | 195 x 55 x 85cm | 195 x 55 x 40cm | 42kg | 180kg | 1 | 199 x 61 x 42cm | 48kg |
