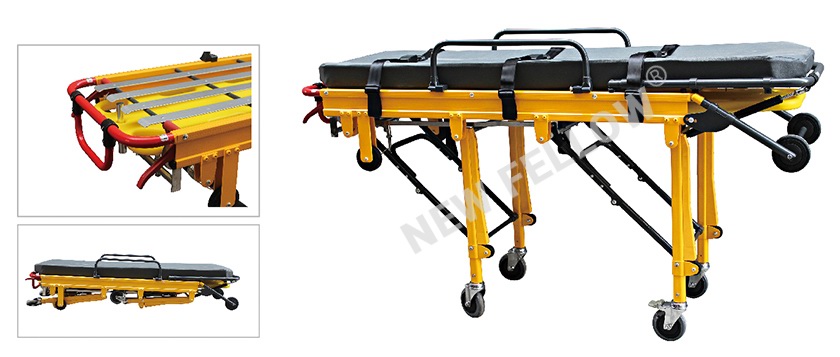

Ambulance Stretcher NF-A2-3

Technical features:

The bottom space for spine board storage

The heith of loading wheels is adjustable to fit different height of ambulance board

The backrest can be adjusted from 0 - 65 deg by gas spring

Swing-down side rails to protect patient when transfer

The mechanical legs are controlled by the handles in both sides, there is a safety lever to control front and hind legs to fold while loading and prevent collapse while standing

Only one person can slide the stretcher on to the ambulance

The stretcher can be locked by the fixing device when it is in the ambulance

It is made of high-strength aluminum alloy

Φ125mm common rubber castors, two with brakes

Mainly used for ambulance, hospitals, emergency centers

Accessories

  • Waterproof seamless welding PVC mattress(5-8cm thickness foam)
  • 3pcs belts for chest, hip and knee

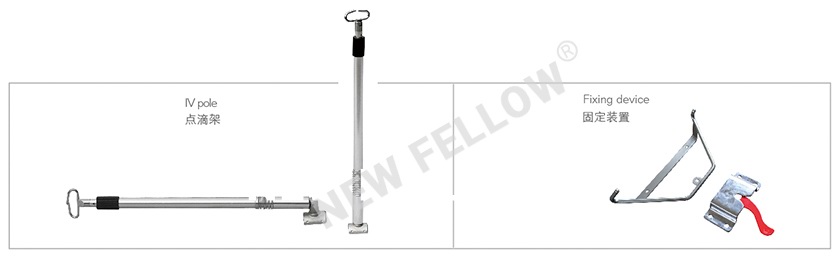

  • Fixing device L01-1

Optional:

  • IV pole I02
  • Pillow
  • Oxygen holder H01

Ambulance Stretcher NF-A2-3 Optional

Model Unfolded size£¨L*W*H£© Folded size£¨L*W*H£© N.W Load Bearing Packing
Quantity Size£¨L*W*H£© G.W
NF-A2-3 195 x 55 x 90cm 195 x 55 x 38cm 40kg 180kg 1 201 x 61 x 40cm 47kg
