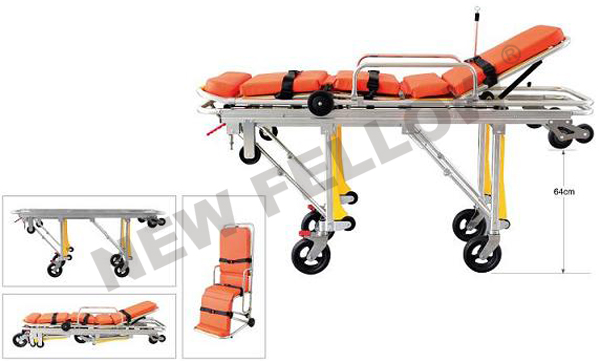

Ambulance Stretcher NF-A3-2

Technical features:

It has a separable stretcher with the main stretcher frame which could be removed from trolley and used as a separate stretcher, easy locking/unlocking system to lock the separable stretcher into the trolley

The separate stretcher with capability to convert into wheel chair

Two sets loading wheels to fit different height of ambulance board

The backrest can be adjusted from 0 - 65 deg by gas spring

Swing-down side rails to protect patient when transfer

The mechanical legs are controlled by the handles in both sides, there is a safety lever to control front and hind legs to fold while loading and prevent collapse while standing

Only one person can slide the stretcher on to the ambulance

The stretcher can be locked by the fixing device when it is in the ambulance

It is made of high-strength aluminum alloy

Φ 200mm wide rubber castors, two with breaks

Mainly used for ambulance, hospitals, emergency centers


Waterproof PVC mattress(5cm thickness foam)

3pcs belts for chest, hip and knee

Fixing device L01-1


IV pole I01


Model High position Low position Maximum angle
of the back
N.W Load Bearing Packing
Quantity Size(L*W*H) G.W
NF-A3-2 195×55×90cm 195×55×38cm 65° 50kg 180kg 1 211×63×40cm 56kg
