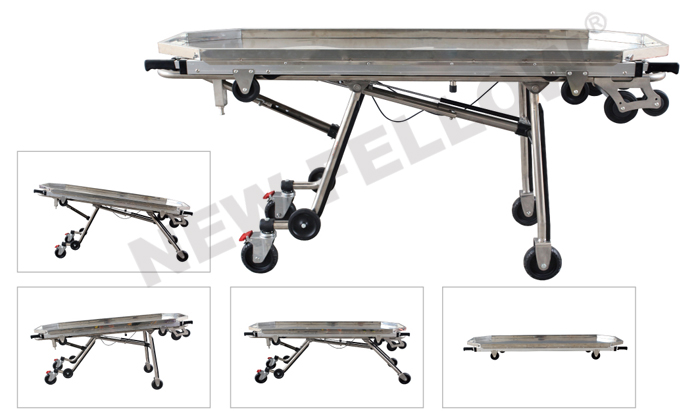

It has a separable stainless steel tray with the main stretcher frame which could be removed from trolley and used separately, easy locking/unlocking system to lock the separable stretcher into the trolley
The tray with 4pcs telescopic handles
Adjustable height£º65-85cm
Multi-level feature allows the body to be moved easily from bed to stretcher
The mechanical legs are controlled by the handles in both sides
Only one person can slide the stretcher on to the ambulance
The stretcher can be locked by the fixing device when it is in the ambulance
It is made of high-strength aluminum alloy.
φ150mm wide rubber castors
Fixing device L01-1
Model | High position | Low position | N.W | Load Bearing | Packing | ||
Quantity | Size(L×W×H) | G.W | |||||
NF-A9-1 | 195×55×85cm | 195×55×38cm | 43kg | 180kg | 1 | 202×62×40cm | 50kg |
